Project · Ventilation
Exhaust air cleaning for a foam plant

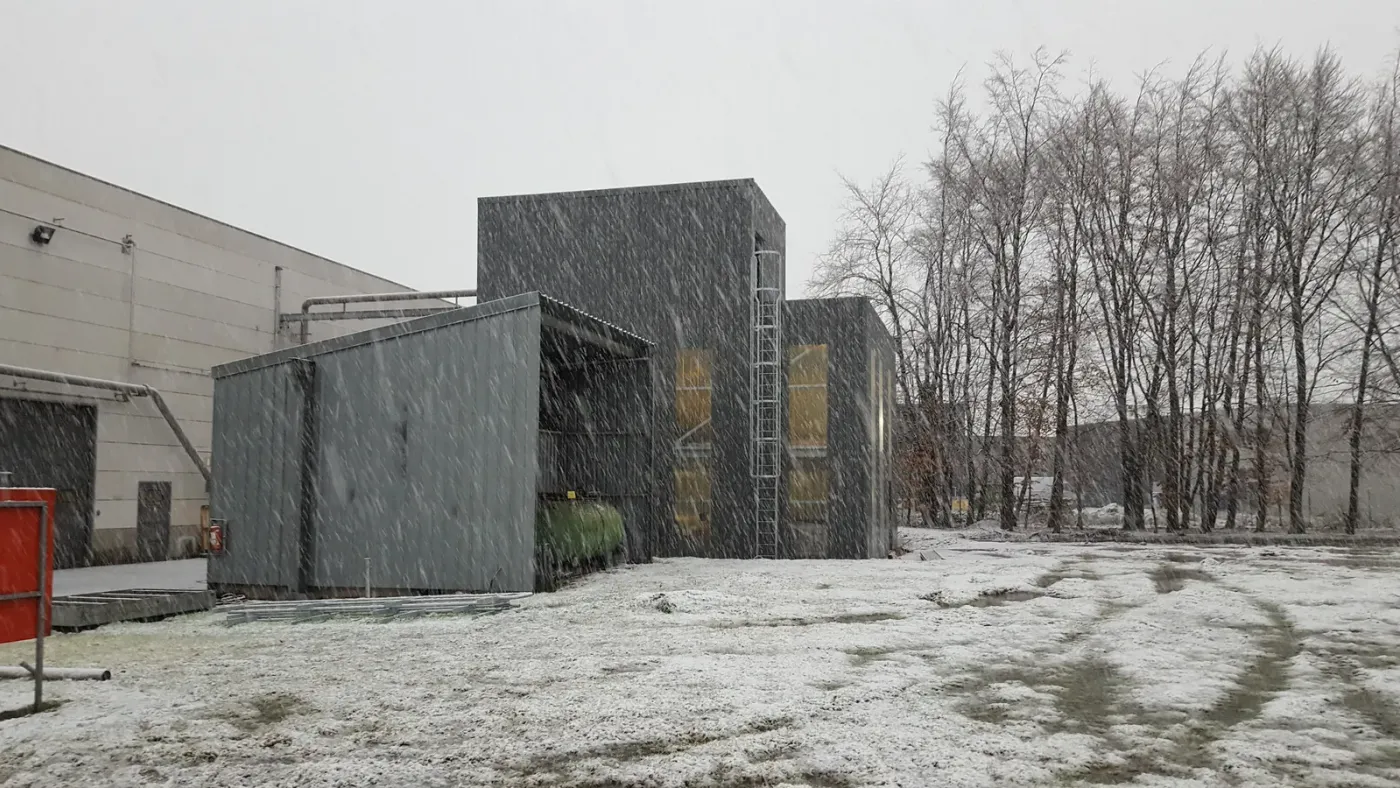

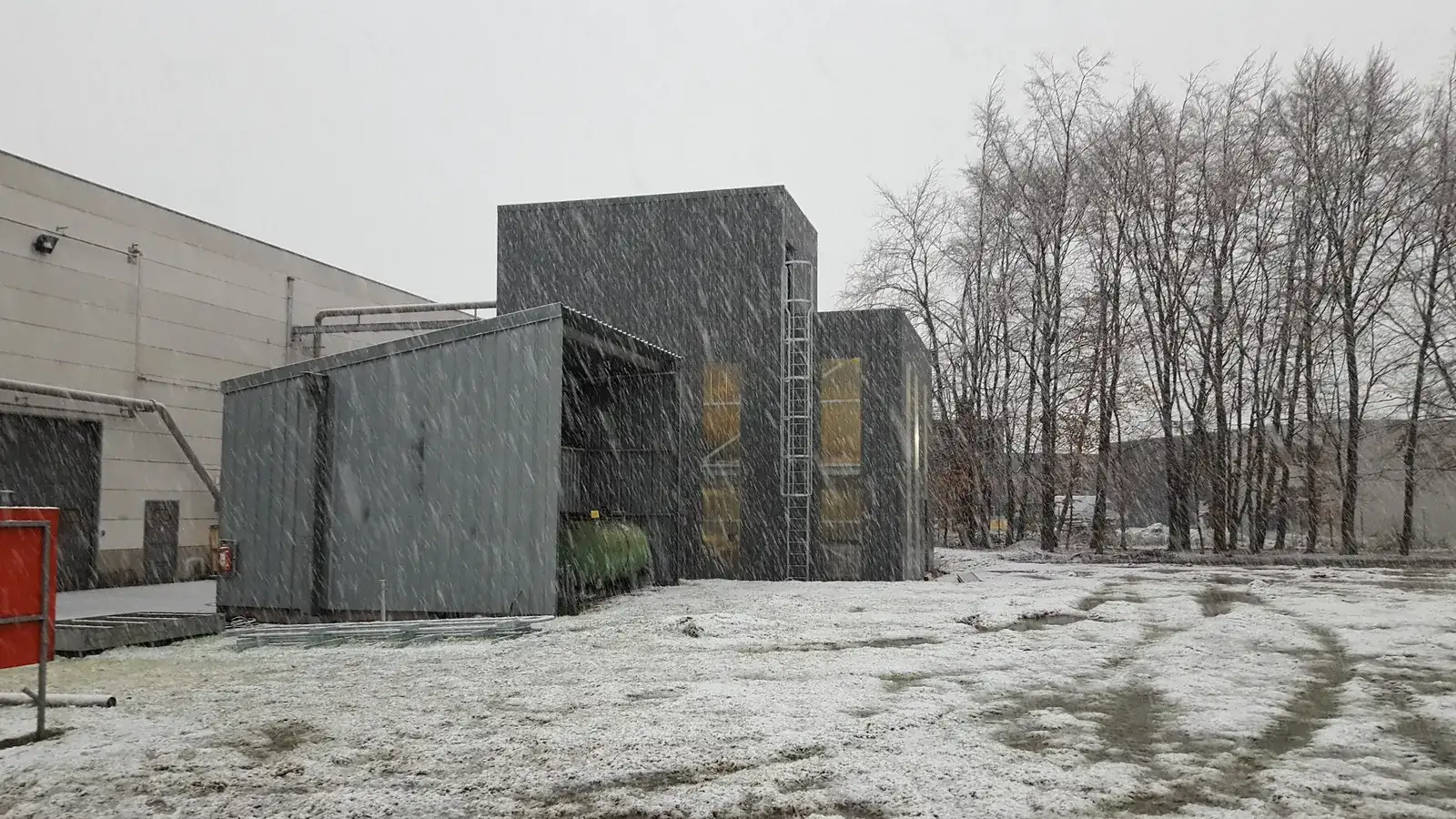

A separate plant house with tanks, pumps and a scrubber — run by a control cabinet with PLC and touch panel from our workshop.
All projects
01The project
Task and solution
The task

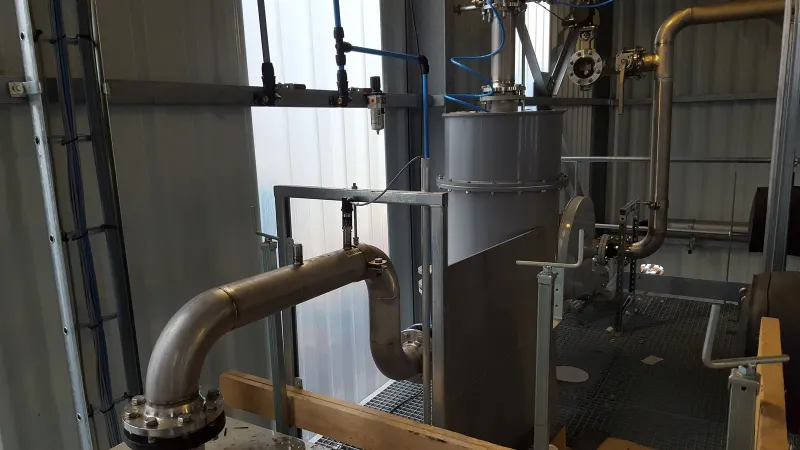

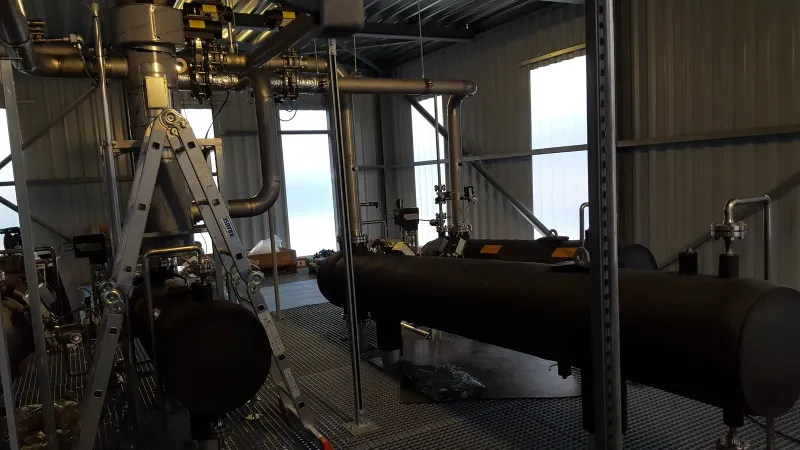

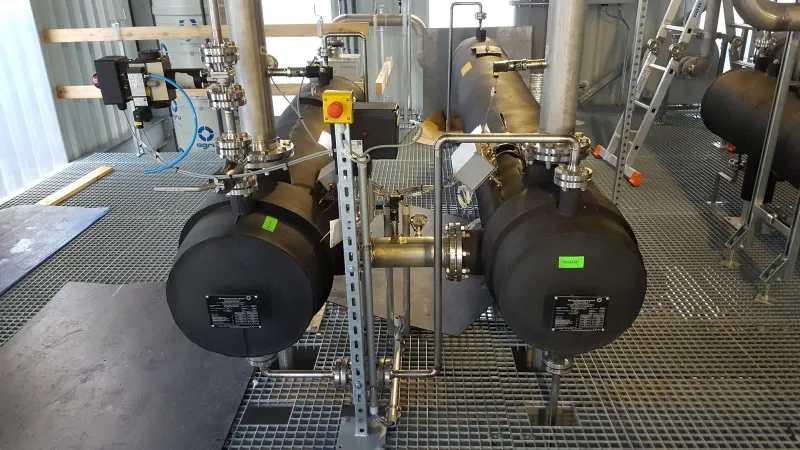

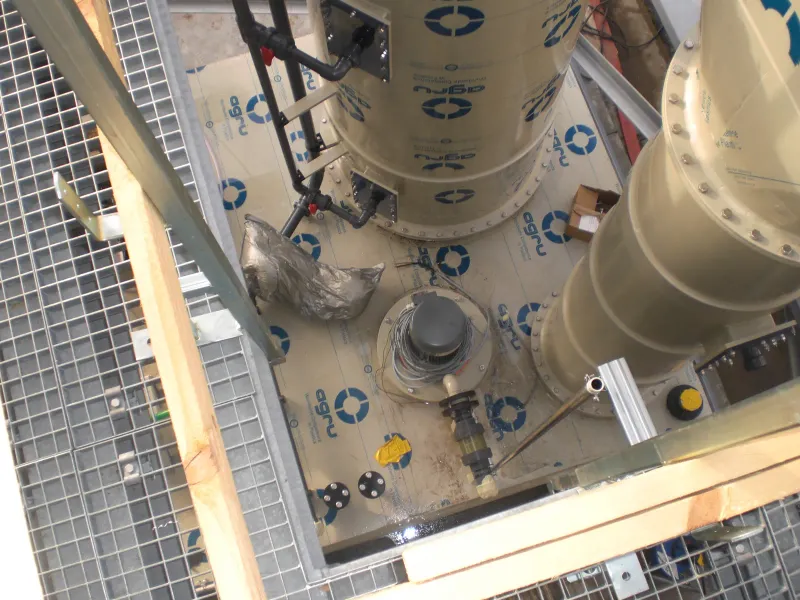

A foam producer was given an exhaust air cleaning plant in a separate plant house: tanks, pumps, valves and a scrubber column. The plant builder needed the controls.
Our work

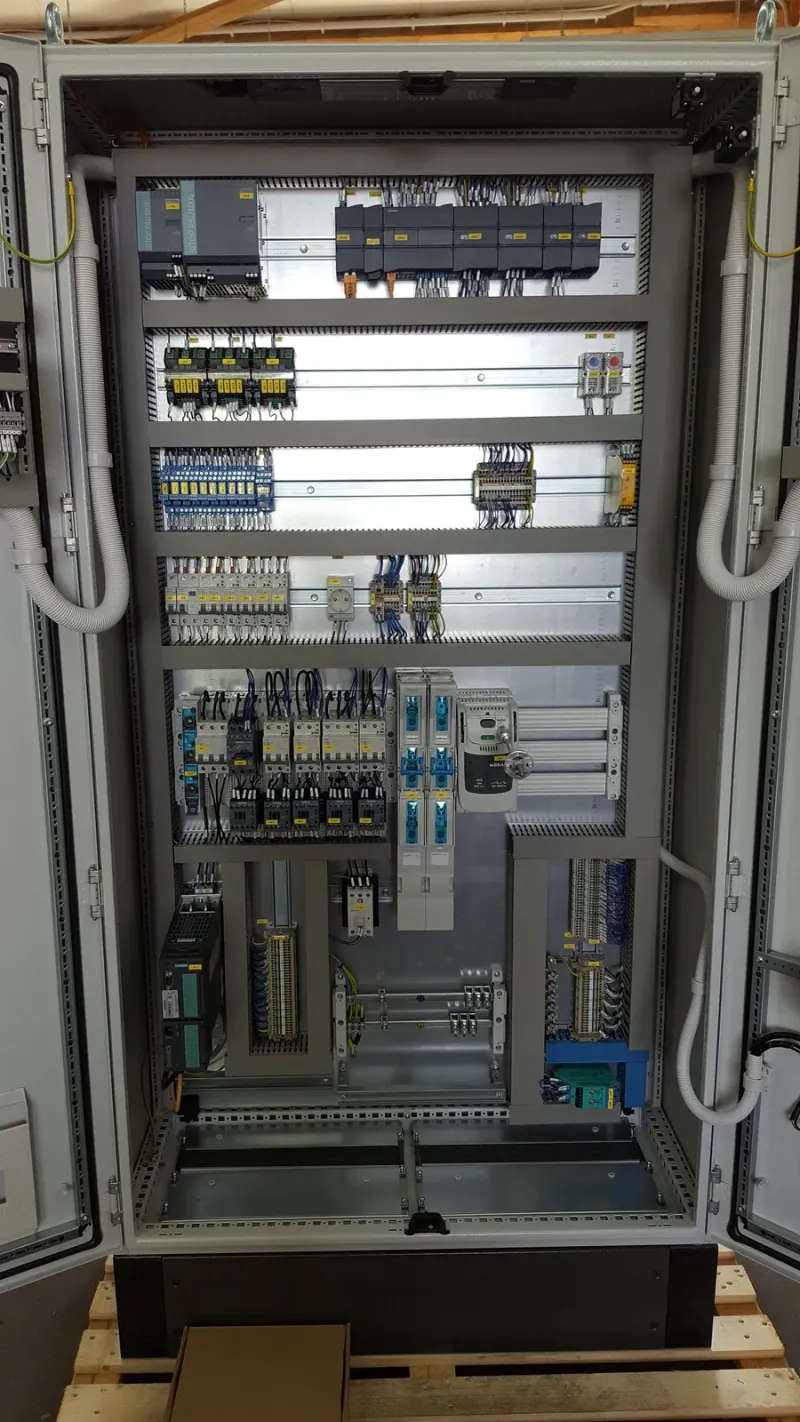

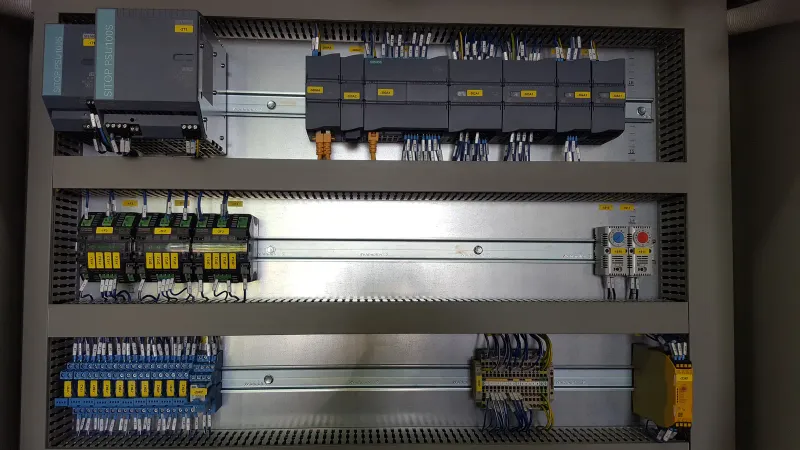

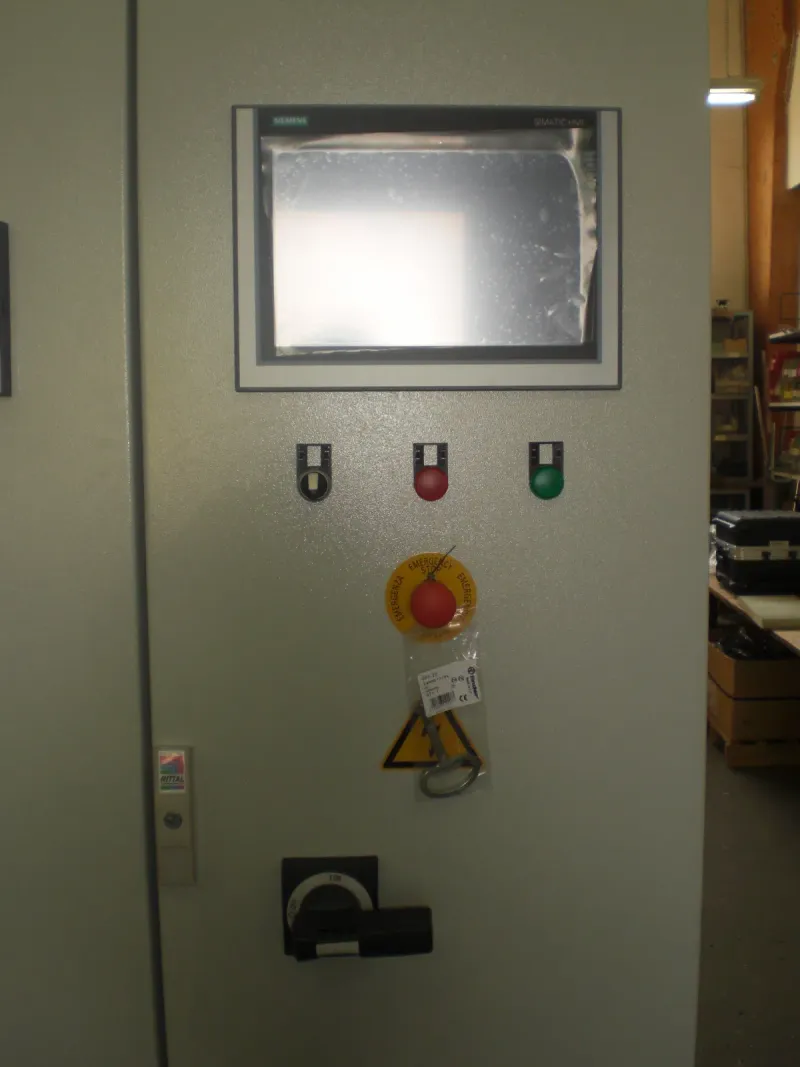

We built the control cabinet with PLC, drives and touch panel and connected the plant on site.
02Photos · 8 photos
